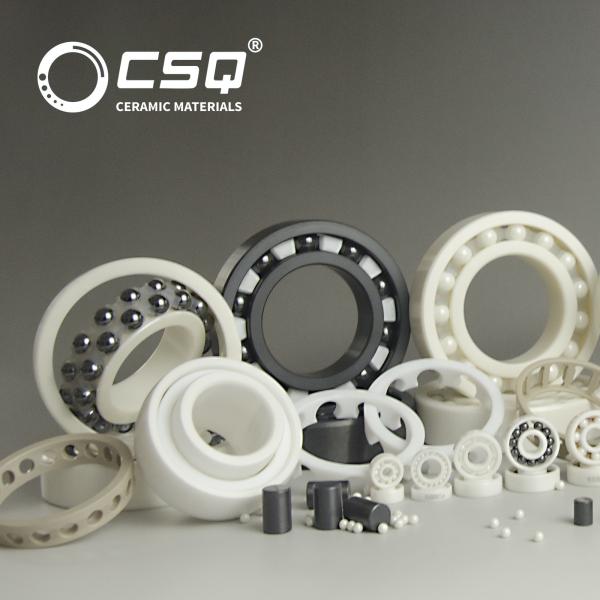

5 to 120mm Zirconia Ceramic Bearing High Temperature

Brand Name : CSQ

Model Number : Non standard

Place of Origin : China

MOQ : 50 pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : Negotiable

Packaging Details : Foam+cartom box

Name : Customized Zirconia Non-standard Balls Bearings

Model : Non standard

Precision : P6/ABEC3 to P4/ABEC7

Race and ball material : Zirconia

Cage material : Peek//PFA or other material you inquired

Pacage : Foam+cartom box

Contact Now

Customized Zirconia Non-standard Balls Bearings With High Precision

Why choose us:

Our company is speciallizing in the production of ceramic rolling bearings and ceramic balls. In addition to the our mass production types-608, our company can according to the different needs of users, custom-make all ceramic bearings in material of zirconia of all precision levels, customized size range can be: inner diameter from 5 to 120mm, outer diameter from 10 to 200mm, including special non-standard size, special non-standard clearance.

Material properties of Zirconia:

♦ Max Temperature up to 380℃

♦ High density: 6.09 g/cm³

♦ Low thermal conductivity

♦ Chemical stability, resistance to acid and alkali corrosion

♦ High fracture toughness KIC:8-11 MPa-m^1/2

♦ Good electric insulation

♦ Better bearing capacity

♦ Wear resistance

♦ High hardness : 1300 HV5

5 to 120mm Zirconia Ceramic Bearing High Temperature
